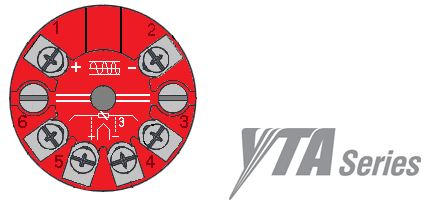

YTA50 Temperature Transmitter

The YTA50 is a head mount temperature transmitter with a single input. The single input accepts thermocouples, RTD, Ohms or a DC millivolt source. All inputs are linearized and converted in to an industrial standard 4 to 20 mA DC output for transmission to your system. YTA50 is the choice for your monitoring applications.

YTA50 features include:

  • 4 to 20 mA DC analog output
  • 16 Input Types
  • Head Mount or DIN Rail Mount
  • YTA50 Temperature Transmitter
  • YTA50 Temperature Transmitter
  • YTA50 Temperature Transmitter
  • YTA50 Temperature Transmitter

Desciption

YTA50 Overview

Microprocessor-based sensing technology ensures high accuracy and stability.

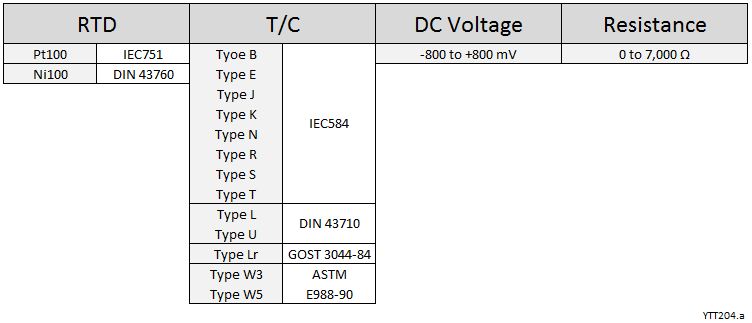

Variety of sensor inputs

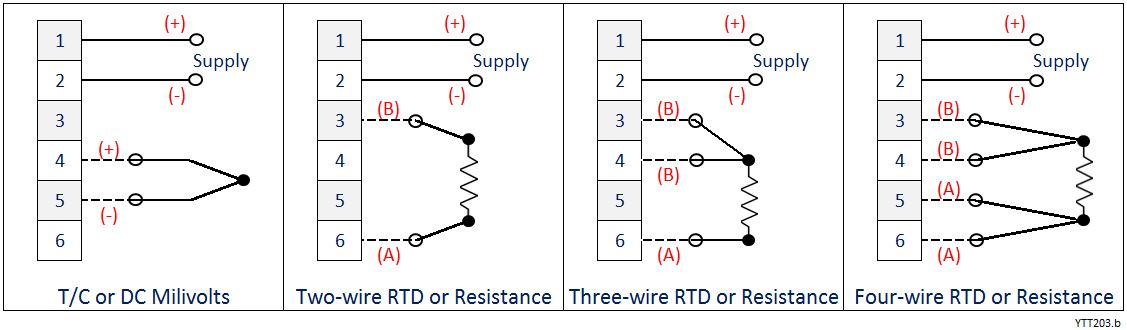

The type of sensor input is user-selectable: RTD, Thermocouple (T/C), DC Voltage, or Resistance.

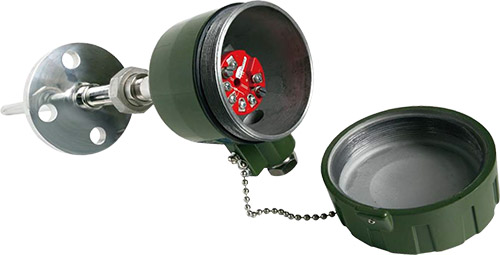

Head Mounting

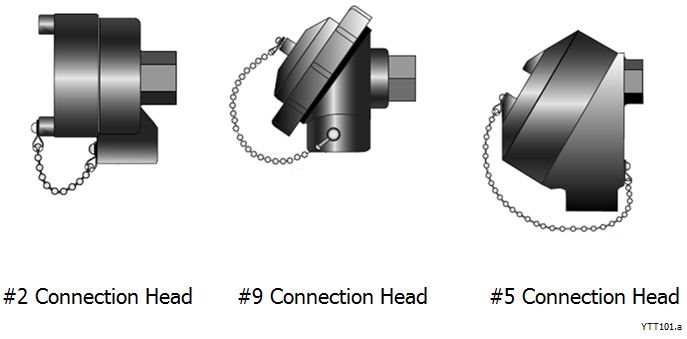

YTA50 is DIN Form B compliant and can be mounted in a #2 or #9 connection head. It can use an adapter plate to attach to a #5 connection head.

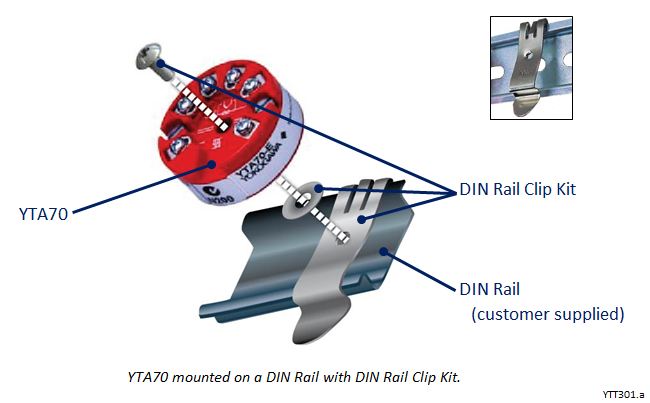

 DIN Rail Mounting

YTA50 Single Input

Download
